Precision CNC Machining Aluminum Jigs

Category

Overall, precision CNC machining aluminum jigs offer a combination of high precision, lightweight construction, corrosion resistance, and cost-effectiveness, making them a preferred choice in many industrial applications.

Why Choose Us

Description

Software/format
PRO/E, Auto CAD, Solid works, IGS, UG, CAD/CAM/CAE
Name

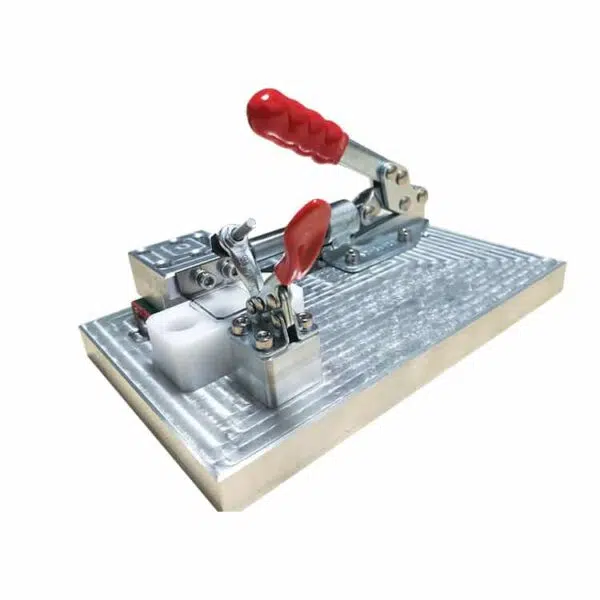

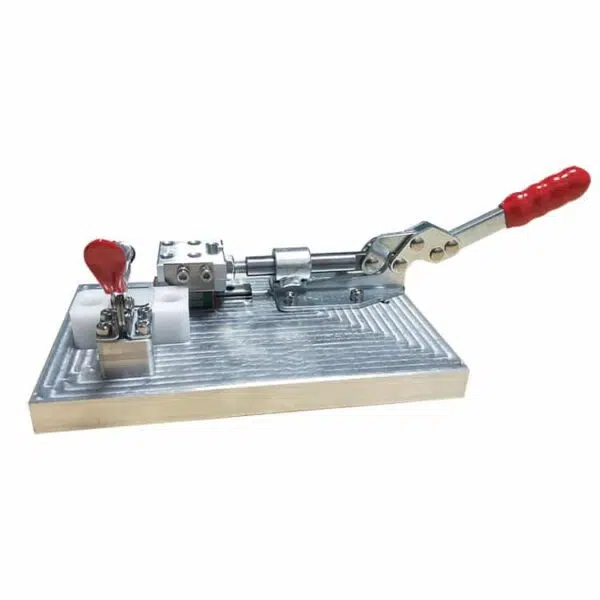

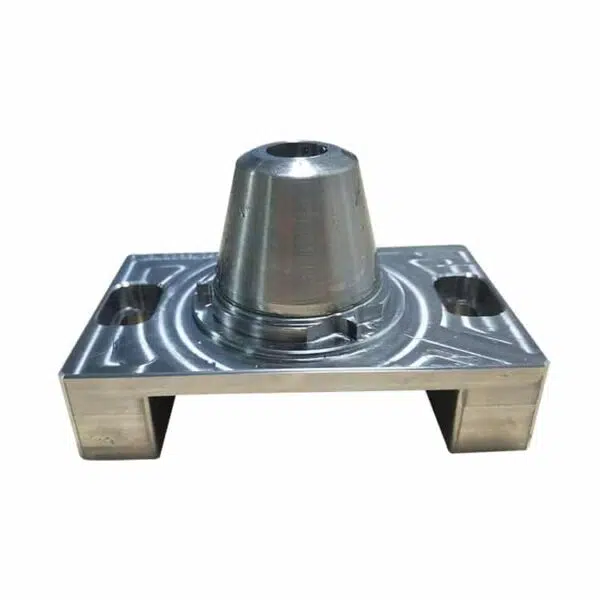

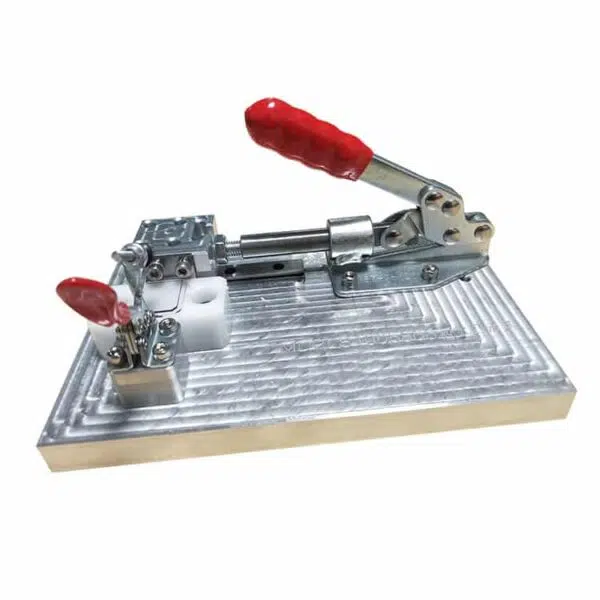

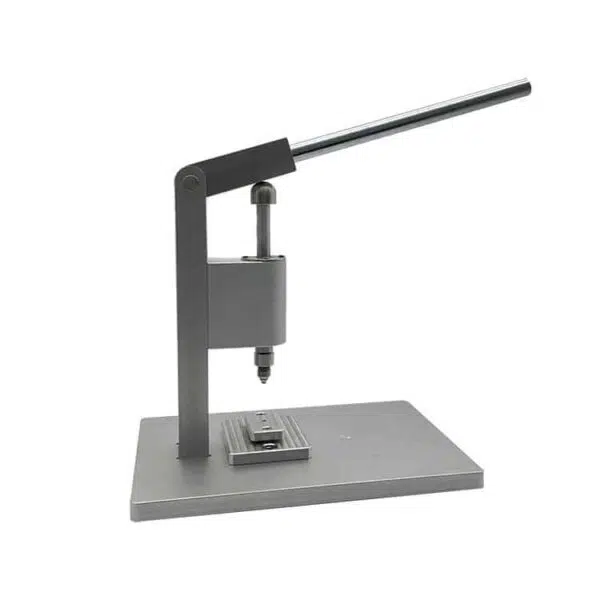

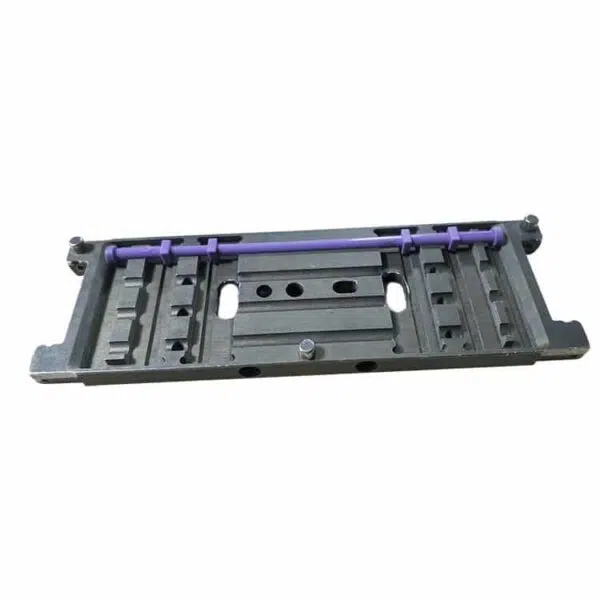

Precision CNC Machining Aluminum Checking Fixture/ Jigs
Tolerance
0.01~0.05mm, can customize as per request.
Dimension
Customized
Test equipment
Measurement instrument, projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin guage etc.
Processing
CNC turning, milling, drilling, auto lathe, tapping, bushing, surface treatment, anodized, casting ,injection,3D printing,etc.
Our Advantages
1.) 24 hours online service & quickly quote/delivery.

2.) 100% QC quality inspection before delivery, can provide quality
inspection form.
 3.) 15+ years of experience in the CNC machining area and have a senior design team to offer perfect modification suggestions.

Features

Precision CNC machining aluminum jigs have several notable features:

1. High Precision: CNC machining ensures precise and accurate dimensions, leading to tight tolerances and excellent repeatability. This makes aluminum jigs suitable for critical applications that require precise positioning or alignment.

2. Lightweight and Durable: Aluminum is a lightweight material that offers high strength-to-weight ratio, making it ideal for manufacturing jigs. It provides sufficient rigidity and durability while keeping the overall weight low, enabling easy handling and transportation.

3. Corrosion Resistance: Aluminum naturally forms a protective oxide layer on its surface, rendering it resistant to corrosion. This quality ensures longevity and reliability of the jigs, even in harsh environments or when exposed to moisture or chemicals.

4. Thermal Conductivity: Aluminum exhibits good thermal conductivity, allowing efficient dissipation of heat during machining processes. This feature prevents overheating and maintains stable operating conditions, resulting in improved accuracy and tool life.

5. Machinability: Aluminum is relatively easy to machine using CNC techniques. It offers excellent chip control, reducing tool wear and increasing productivity. Its machinability enables complex geometries and intricate designs, enhancing the functionality and versatility of the jigs.

6. Customizability: CNC machining allows for precise customization of aluminum jigs according to specific requirements. This includes intricate features, holes, slots, or threads, enabling seamless integration with other components or workpieces in various manufacturing processes.

7. Cost-effective: Aluminum is generally more cost-effective compared to other materials commonly used in jig manufacturing, such as steel or titanium. Its availability, machinability, and recyclability contribute to lower production costs without compromising on quality or performance.

Overall, precision CNC machining aluminum jigs offer a combination of high precision, lightweight construction, corrosion resistance, and cost-effectiveness, making them a preferred choice in many industrial applications.

Main Materials

Main Materials
Aluminum
Al6061, Al6063, Al6082, Al7075, Al2024, Al5052, A380, etc.
Stainless Steel
SS201,SS301,SS303, SS304, SS316, SS416, etc.
Steel
Mild Steel, Carbon Steel, 4140, 4340, Q235, Q345B, 20#, 45#, etc.
Brass
C35600, C36000, C37700, C37000, C37100, C28000, C26000, C24000, C22000, etc.
Copper
C11000, C12000, C12200, C10100, etc.
Iron
20#, 45#, Q235, Q345, Q3458, 1214, 12L14, 1215, etc.
Plastic
POM, Peek, PMMA, ABS, Delrin, Nylon, PVC, PP, PC, etc

Surface Treatment

Surface Treatment
Stainless Steel
Brushed and Polishing, Passivating, Sandblasting, Laser engraving, Gold Plating Etc.
Steel
Zinc plating, Oxide black, Nickel plating, Chrome plating, Carburized, Powder Coated
Aluminum Parts
Clear Anodized, Color Anodized, Sandblast Anodized, Chemical Film, Brushing, Polishing, Powder Coated, Nickel Plated Etc.
Plastic
Plating gold (ABS), Painting, Brushing (Acrylic), laser engraving
