Customized CNC Machining Checking Fixture for Automotive Bracket

When it comes to automotive bracket features, a customized CNC machining checking fixture should incorporate several important aspects.

Why Choose Us

Description

Cavity Material 1.2738,1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407, S136, Calmax 635 NAK80,
SKD-61,NIMAX, 45#, 50#, Aluminum for prototype mold etc.
Runner Cold runner or Hot runner :YUDO/ HUSKY/MOLD-MASTER/SYNVENTIRE/INCO/ MASTIP/ HASCO/ DME
Gate Submarine gate, tunnel gate, side/edge gate, direct gate, pin point gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate, hot tip, hot drop, valve gate etc.
Plastic material for parts PS, SAN, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU, TPV etc
Process CNC, high speed carve, EDM ,wiring-cutting, drill, polish etc
Lead Time 10-30 work days depends on the structure and size of products
Package Wooden Case Package or according to customer requirement
Price Term EX Works, FOB Shenzhen, FOB Hong Kong, China, CFR, CIF, DDU, DDP

Features

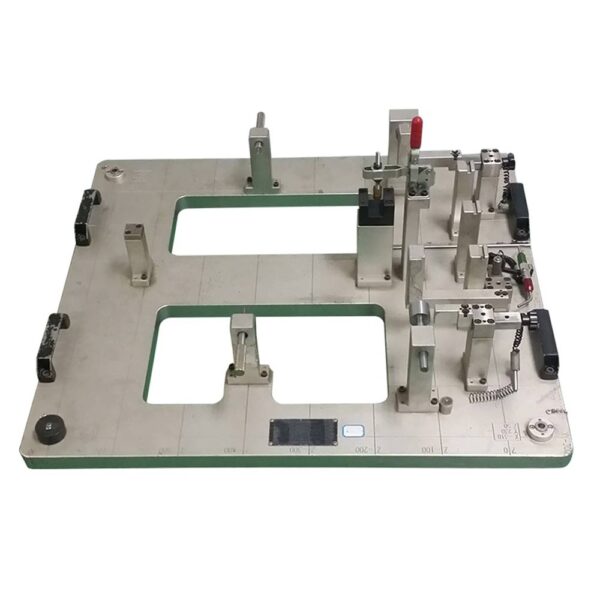

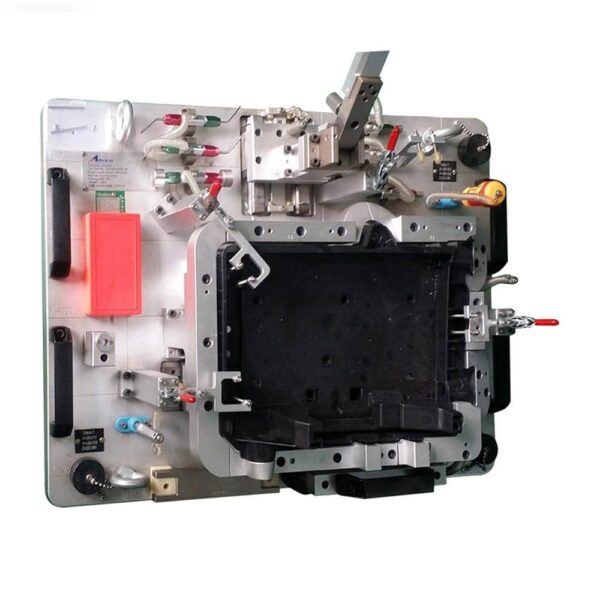

When it comes to automotive bracket features, a customized CNC machining checking fixture should incorporate several important aspects. Here are a few features which may be included in such a fixture:

Material: To guarantee stability and accuracy during measurements, fixtures should be constructed from strong yet lightweight materials like aluminum or steel.

Versatility: For maximum testing flexibility, fixtures should be constructed to accommodate various bracket sizes and shapes for testing automotive bracket designs.

Modular Design: A modular design makes customization and reconfiguration of the fixture quickly and effortlessly, saving both time and cost in terms of configuration requirements.

Precision measurement capabilities: For accurate measurements of bracket features, fixtures should incorporate precise measuring instruments like dial indicators, digital calipers or coordinate measuring machines (CMMs).

Clamping mechanism: When testing, any fixture should have a strong clamping mechanism to secure and stabilize the bracket so as to eliminate movement or distortion that might compromise measurement accuracy.

Datum Points and Reference Features: A fixture should include well-defined datum points and reference features to ensure consistent and accurate positioning of the bracket during testing, providing repeatability and interchangeability.

Accessibility: It is crucial that the fixture allows easy access to all essential bracket features for inspection and measurement purposes.

Tolerance Verification: For optimal performance, fixtures must include methods for verifying tolerances quickly to quickly identify any deviations from specifications; such as go/no-go gauges or digital readouts.

Durability and longevity: To ensure proper functioning over a longer period, fixtures should be designed and manufactured to withstand regular use while remaining accurate and reliable over time.

Documentation: Any fixture purchased should come complete with comprehensive documentation that details specifications, operating instructions and maintenance guidelines to ensure correct setup, usage and upkeep.

Implementing these features into a customized CNC machining checking fixture for automotive bracket features will enable accurate testing, measurement, and verification of these essential components.
